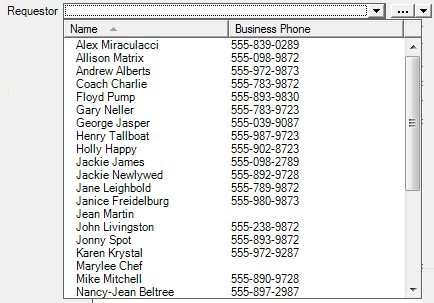

Editor windows often specify information using drop-down lists, also known as pickers. For example, the "Requestor" field in a work request editor is a drop-down list:

As shown above, a drop-down list ends with three symbols:

• The left-most arrow displays a list of available values for the field. In the case of "Requestor" this will be a list of the people whom you've authorized to submit work requests.

• The "..." opens a window showing the complete table. For example, if you click the "..." for "Requestor", you get the Requestors table. Click an entry in the table, then click Select to fill in the original field.

• The right-most arrow of the drop-down list opens a menu that gives you a number of options. For example, if you click this arrow for the "Requestor" field, you'll see the following:

  Browse lets you look at the existing Requestors table, just like the "..." button. New Requestor lets you create a new requestor record; if you do this, the requestor will be filled into the original "Requestor" field once you save and close the new record. This makes it easy to create new records as needed if you don't already have an appropriate record. Edit lets you edit the selected requestor record, while View lets you look at the record (but not change it). Export, Import, and Save XML Schema are related to importing and exporting data; for more information, Importing and Exporting Data in Tables. Clear deletes the current contents of the field (if any).

See Also:

• Multi-Select Features
